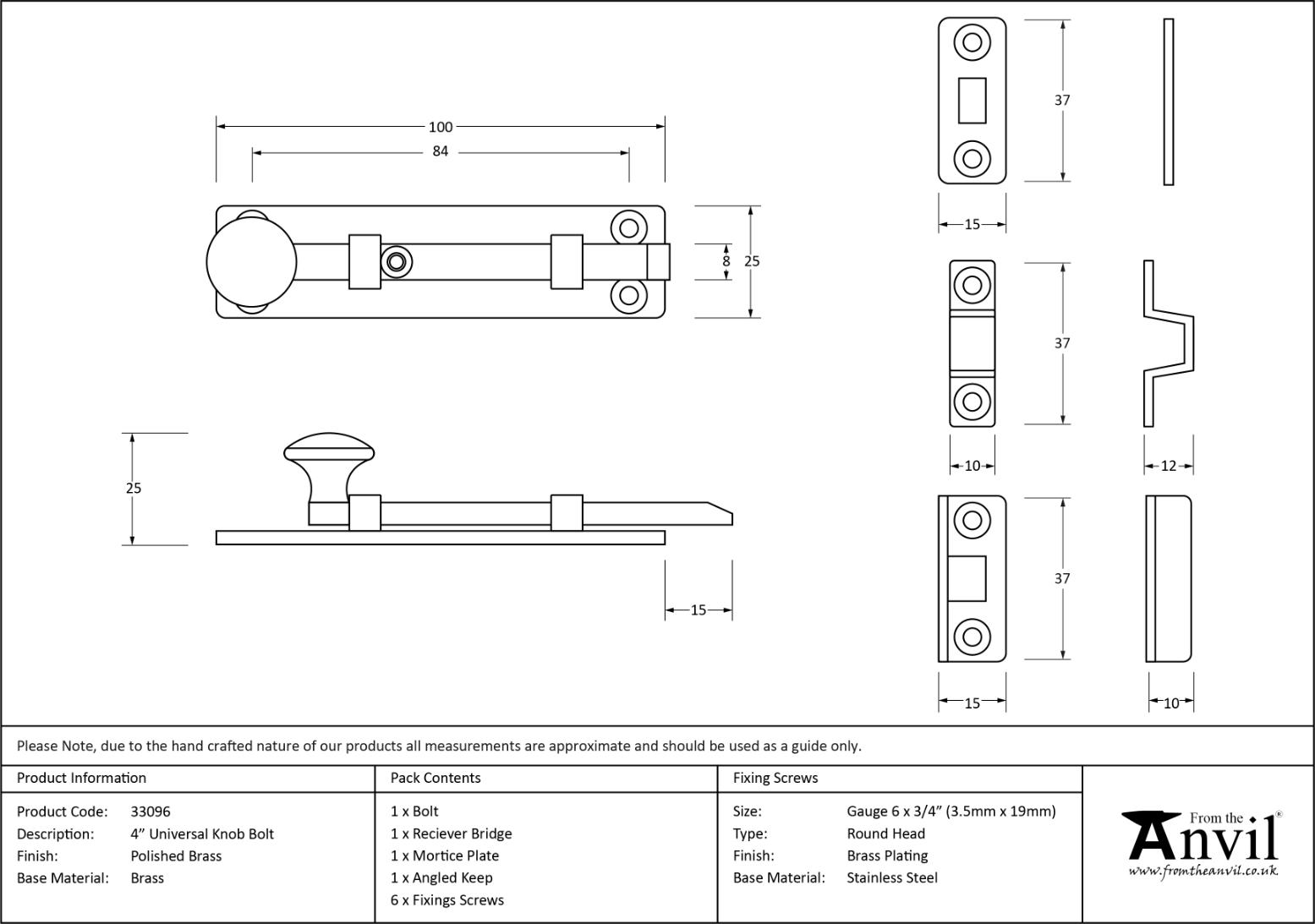

Fixing Plate: 100mm x 25mm x 3mm

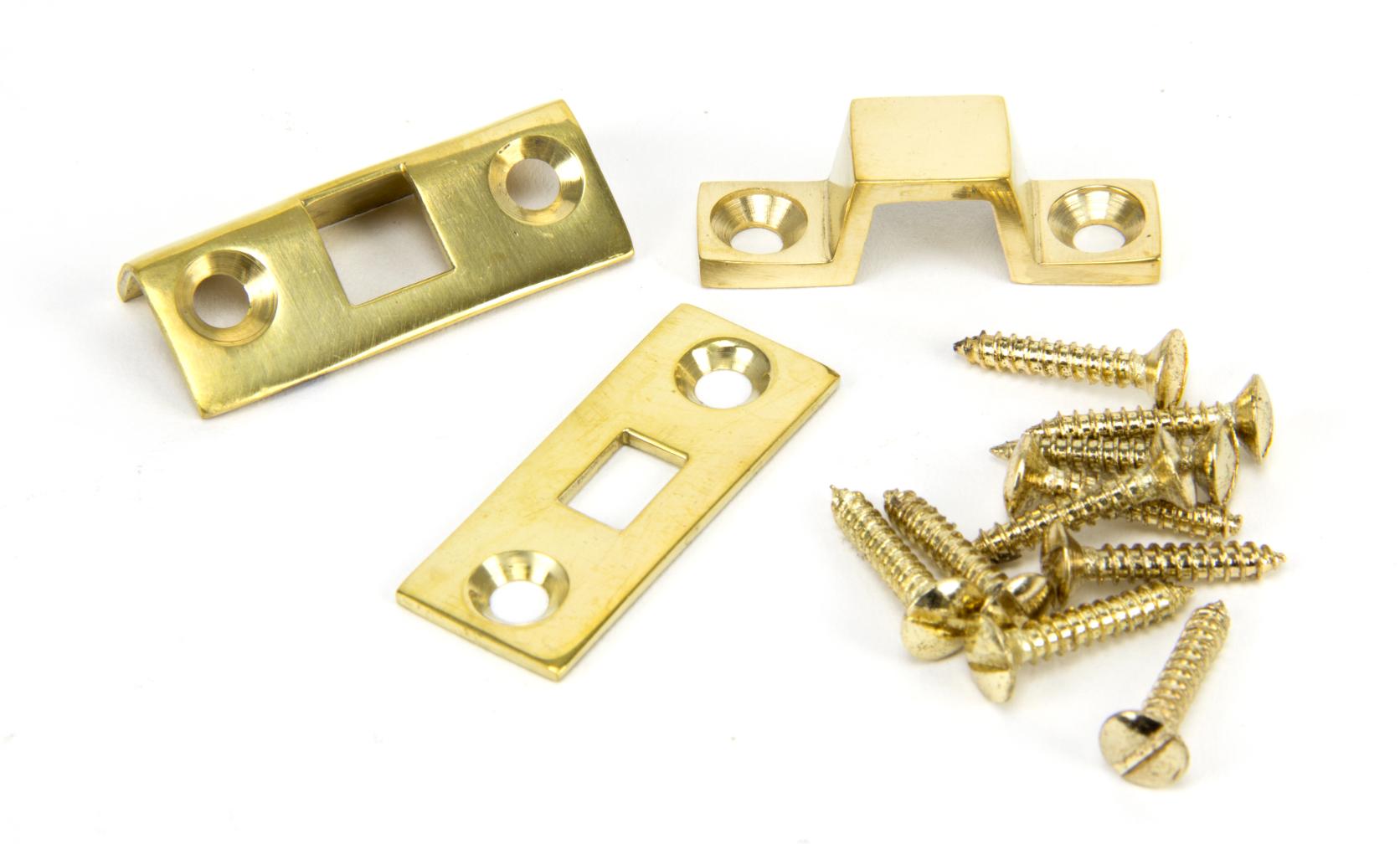

Receiver Plate: 37mm x 15mm x 2mm
Receiver Bridge: 37mm x 10mm x 3mm (Height:12mm)
Angled Keep: 37mm x 15mm x 2mm (Depth:10mm)

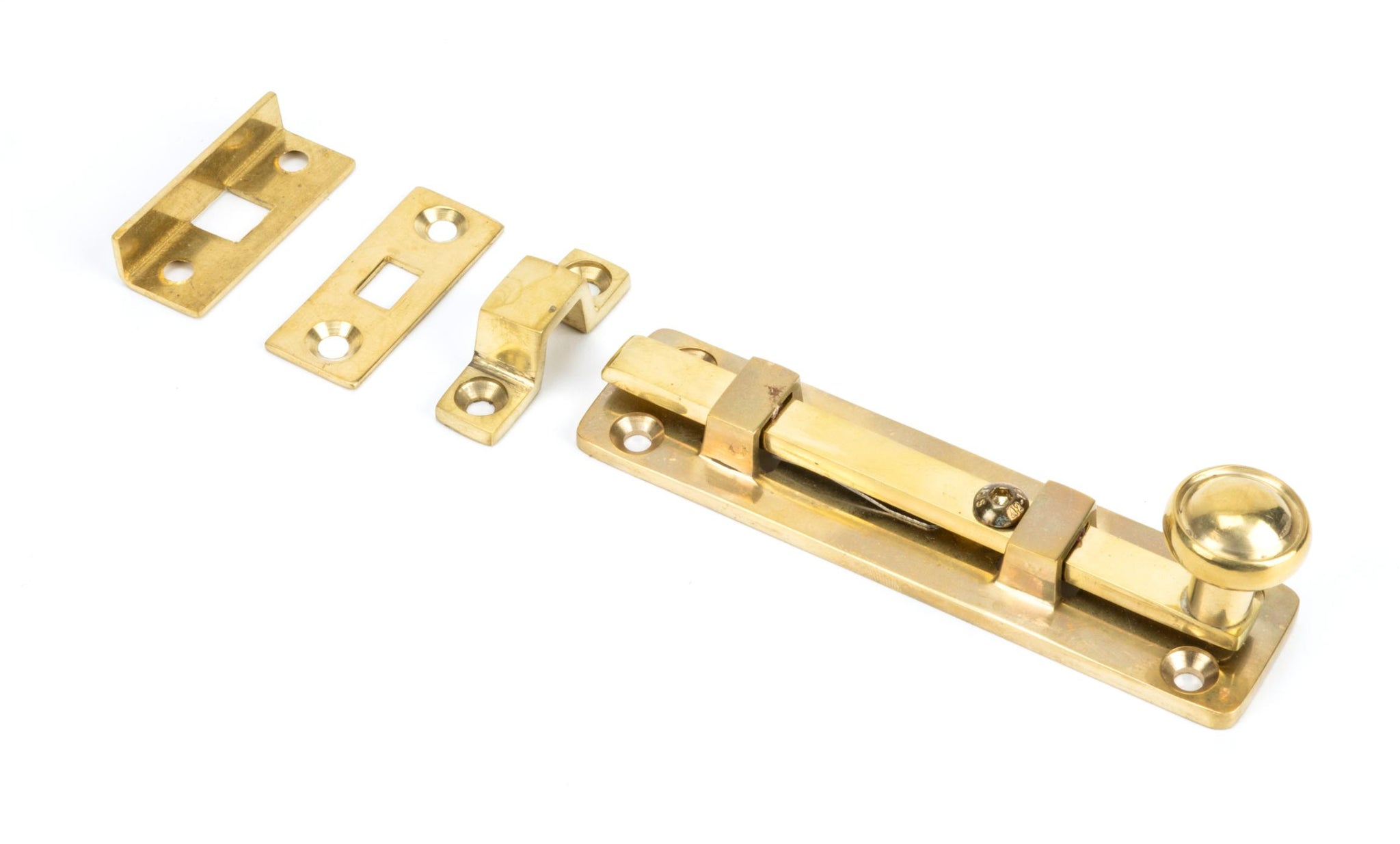

Throw: 15mm We have an extensive range of door, window, french and flush bolts, ranging from 4" to 12". A multi purpose bolt which can be used on windows or doors and in other applications due to a variety of keeps supplied with the product. Can be used horizontally & vertically due to the strong spring mechanism incorporated into the bolts. Supplied with matching SS wood screws.
