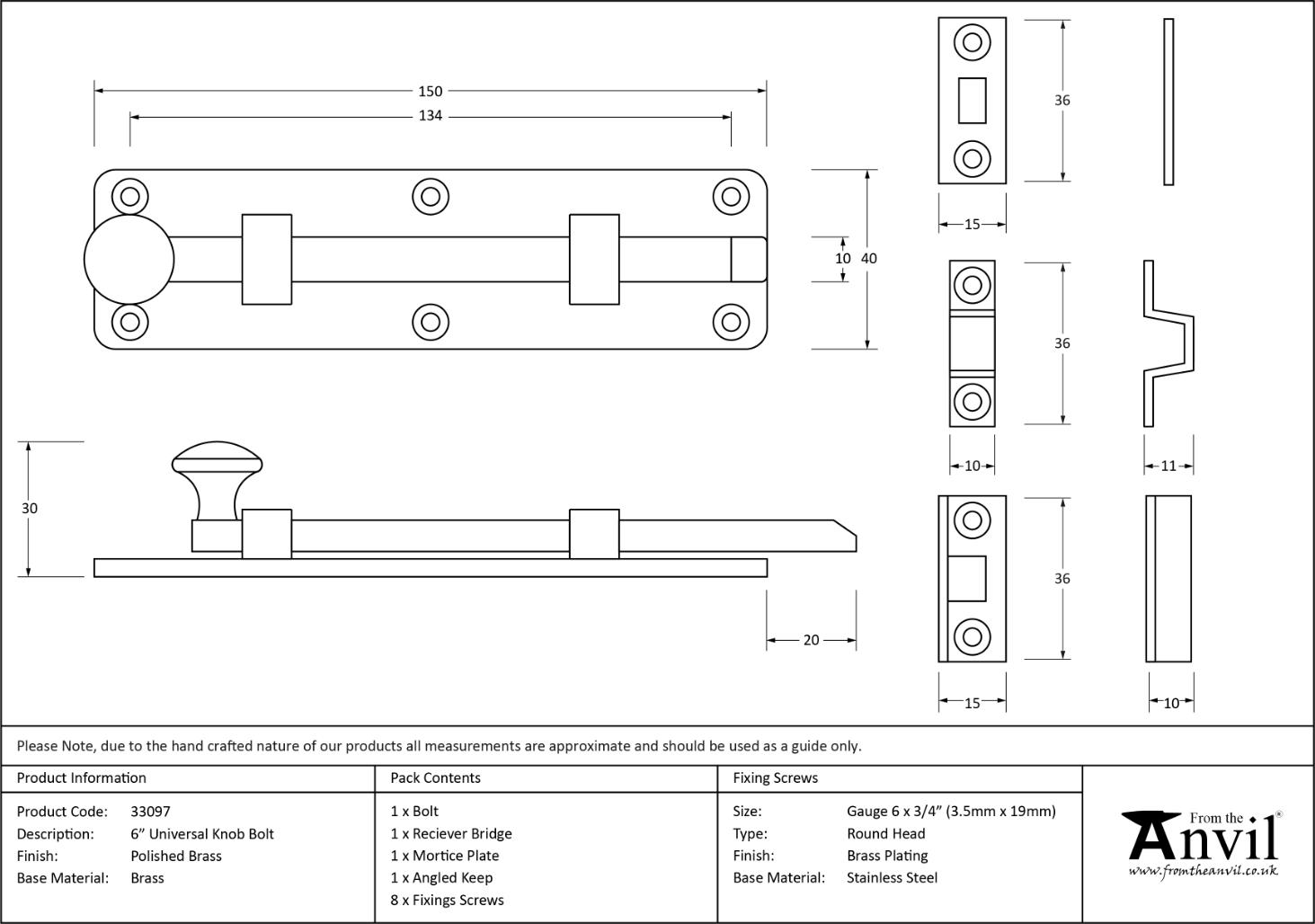

Fixing Plate: 150mm x 40mm x 4mm
Receiver Plate: 40mm x 15mm x 2mm
Receiver Bridge: 43mm x 10mm x 4mm (Height:16mm)
Angled Keep: 40mm x 15mm x 2mm (Depth:10mm)

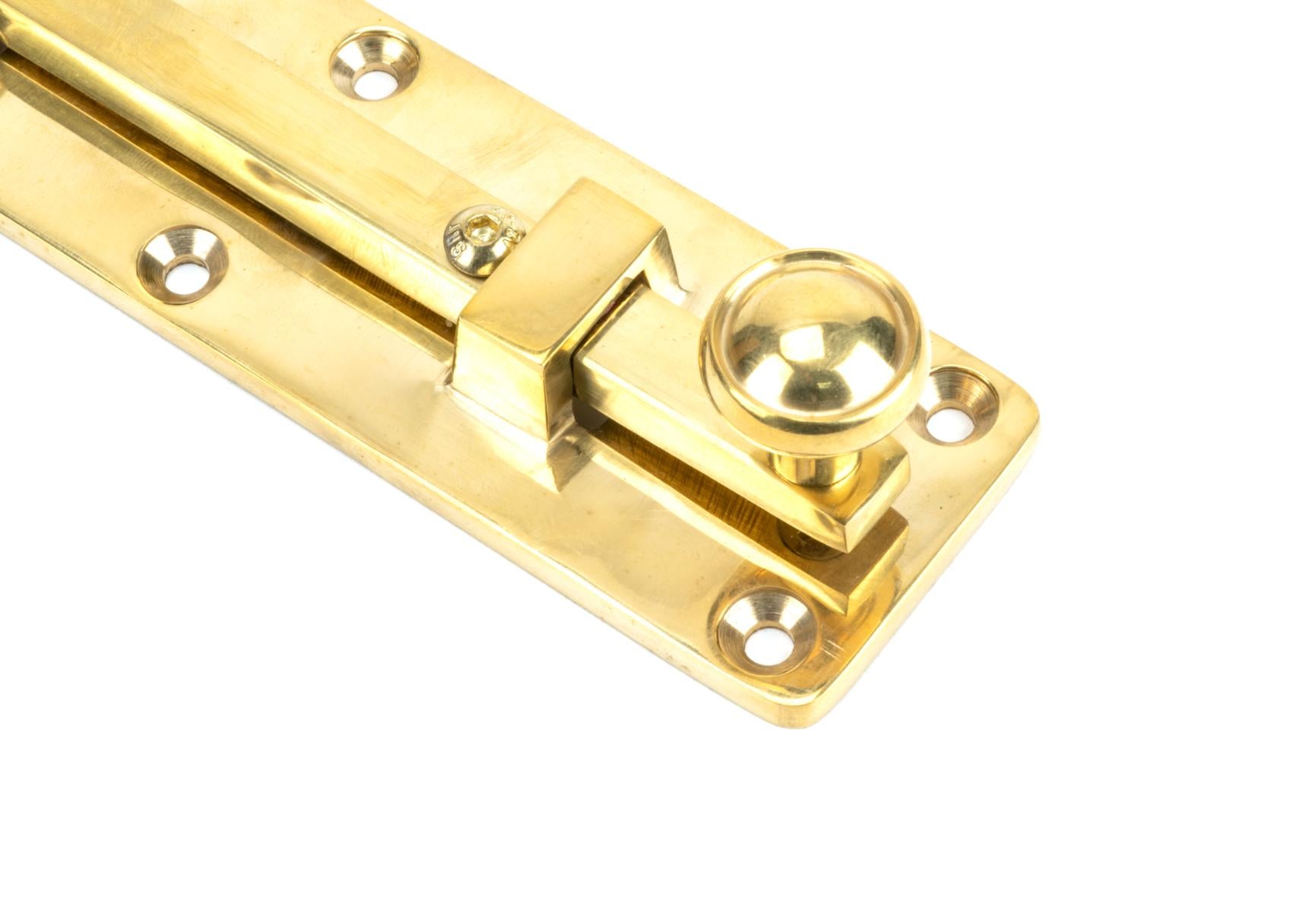

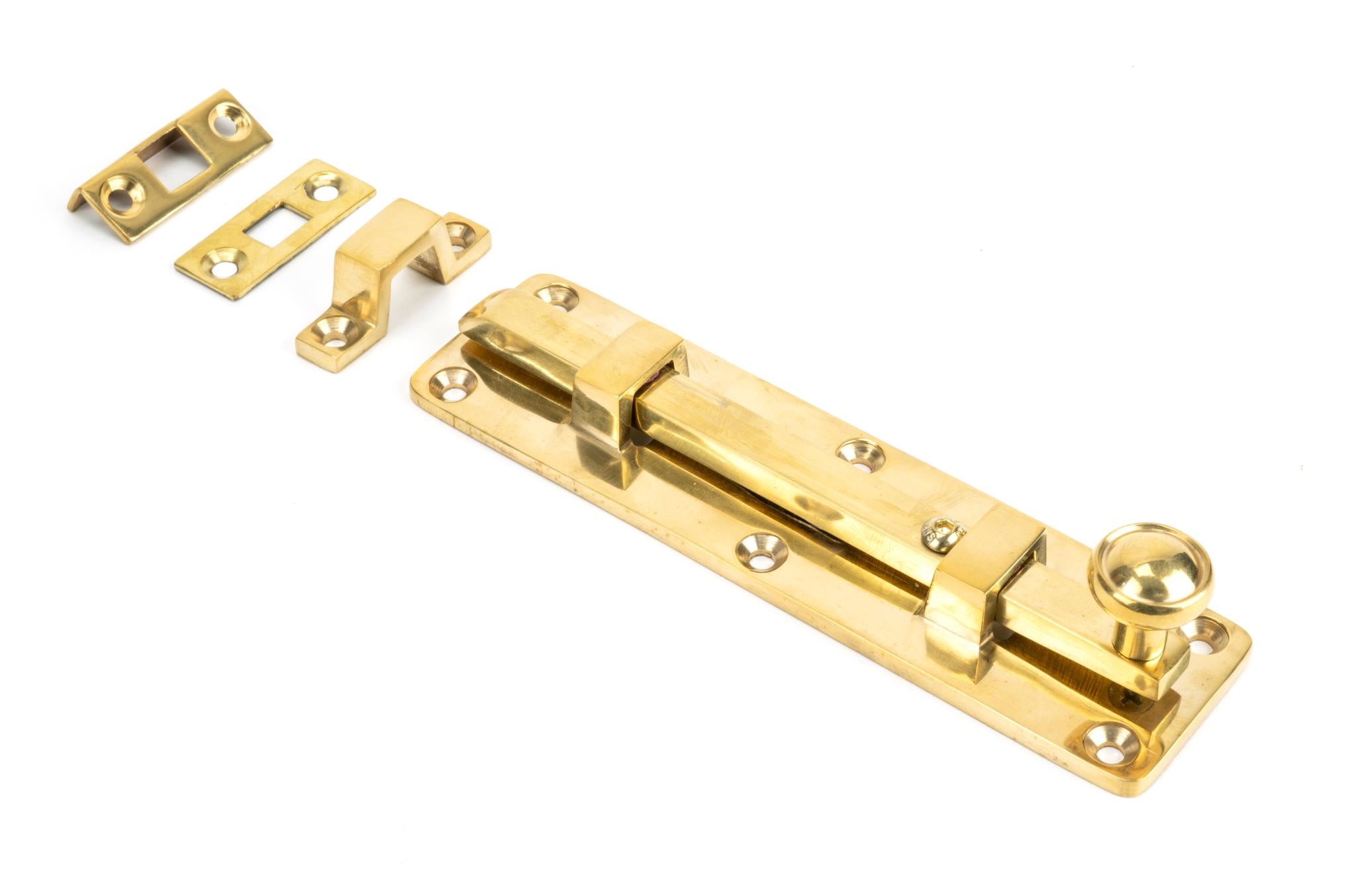

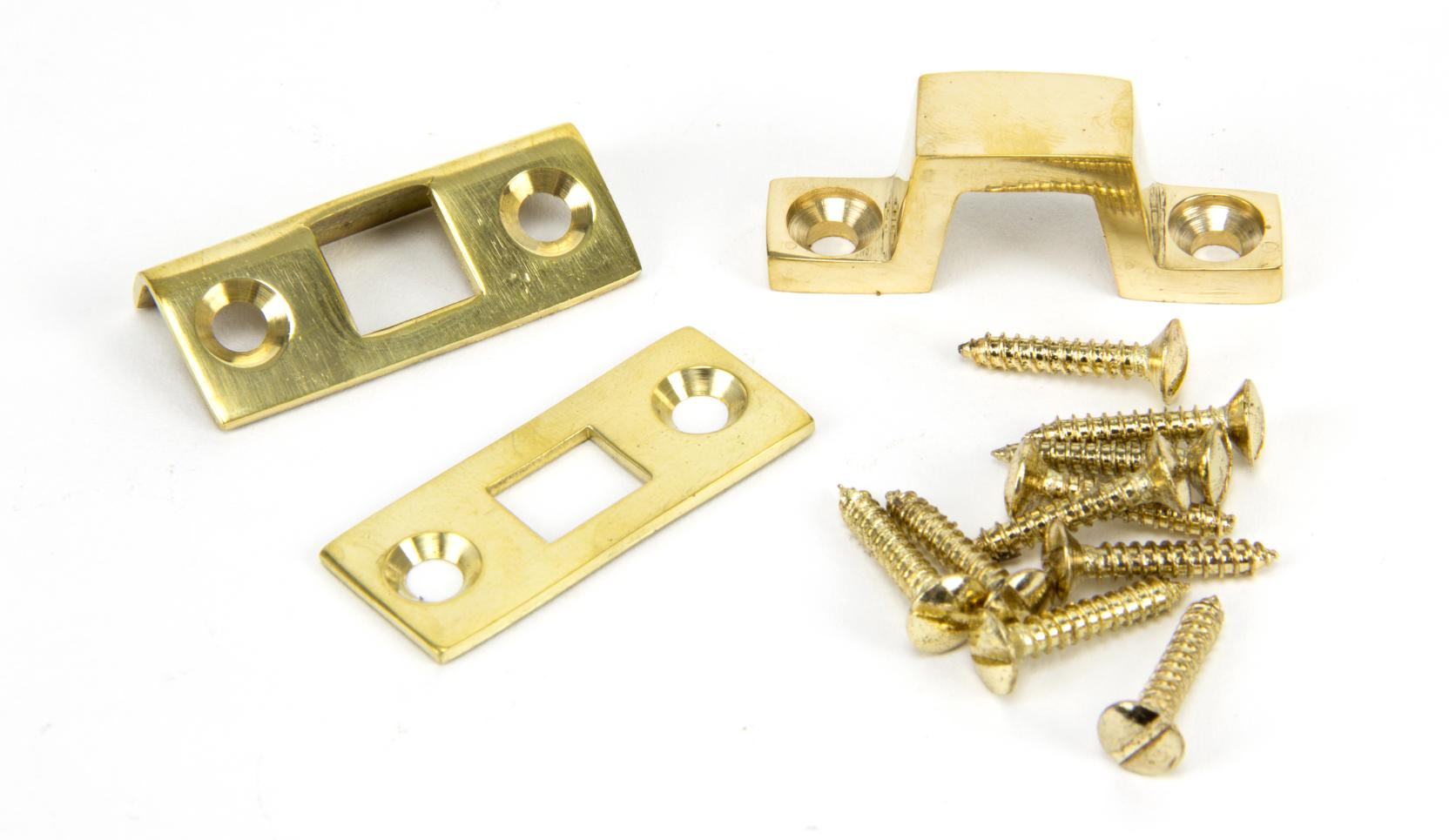

Throw: 20mm We have an extensive range of door, window, french and flush bolts, ranging from 4" to 12". A multi purpose bolt which can be used on windows or doors and in other applications due to a variety of keeps supplied with the product. Can be used horizontally & vertically due to the strong spring mechanism incorporated into the bolts. Supplied with matching SS wood screws.
